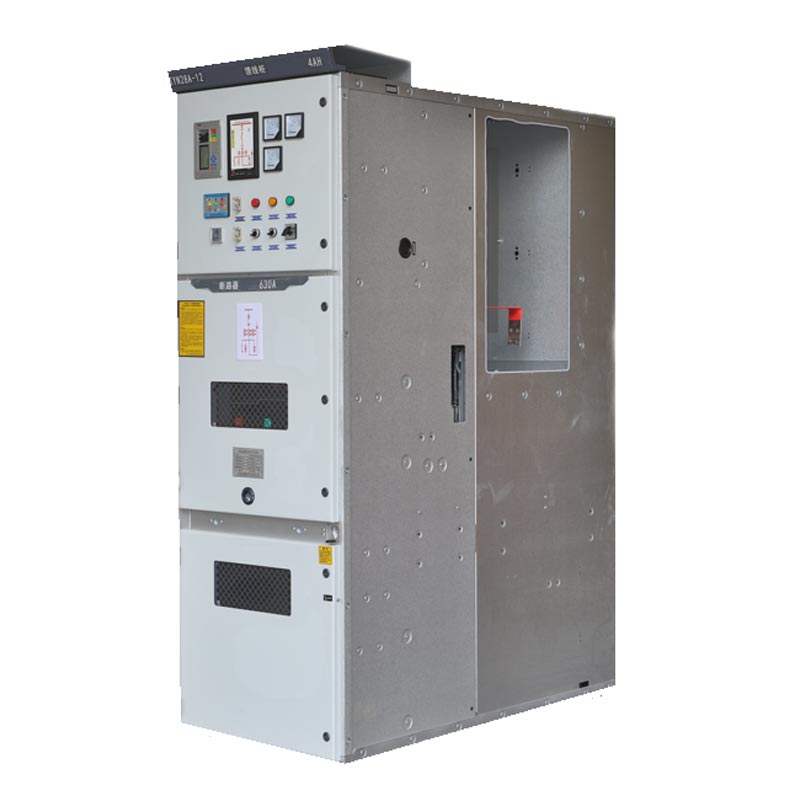

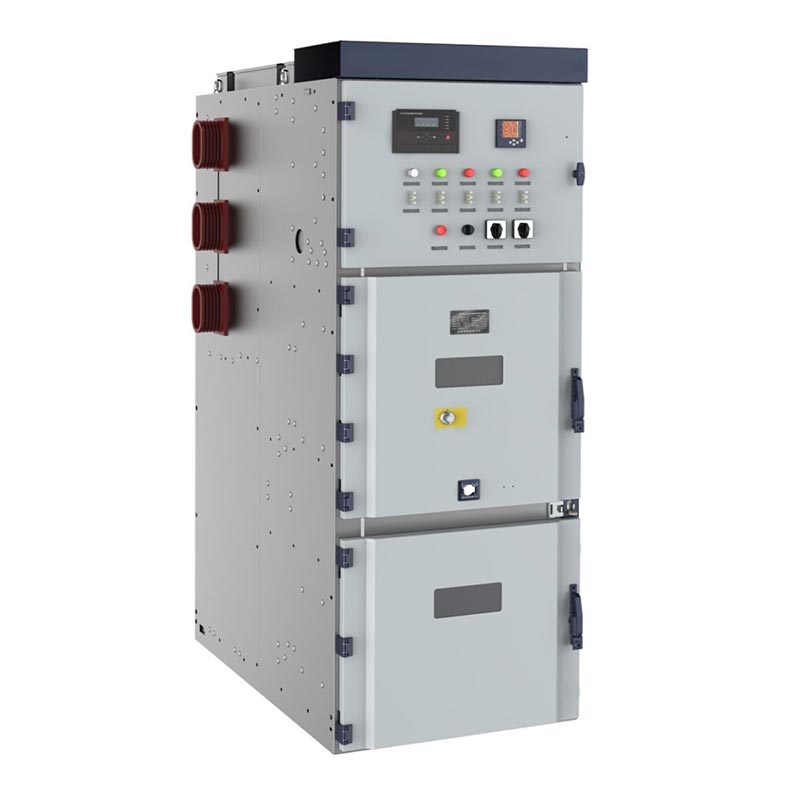

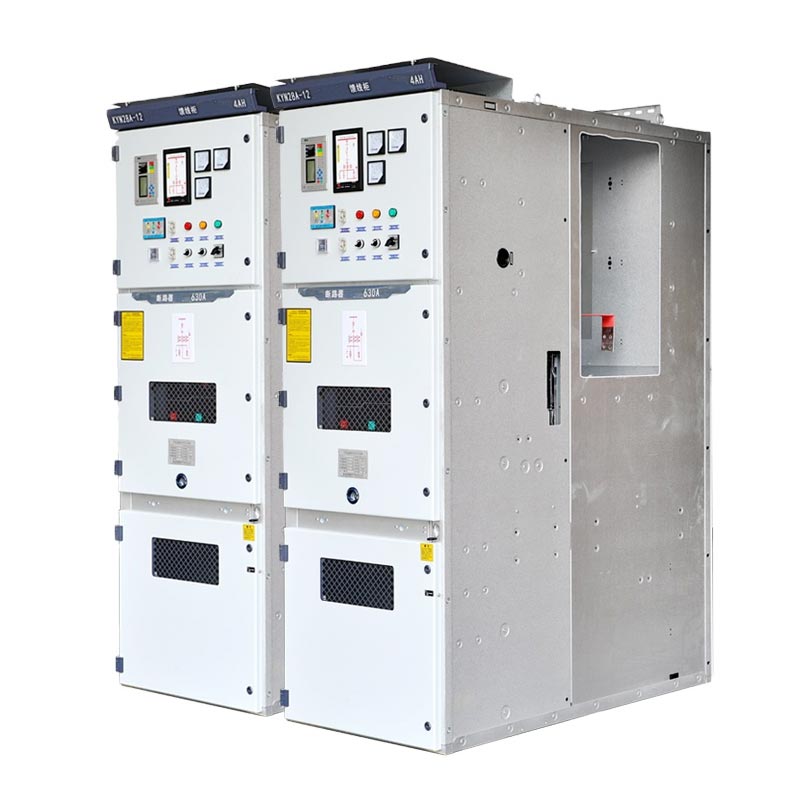

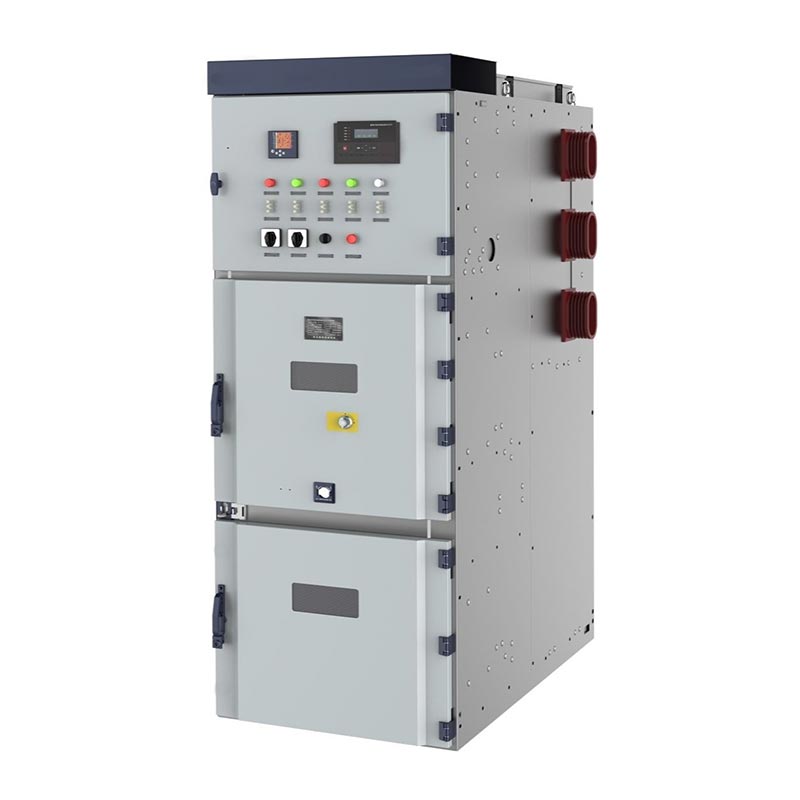

Usus Kyn28 Switchgear 24kV est umbraticis metallico vestiti detracto medio-voltage vacuo switchgear cum rated voltages obtegens amet gradus 13.8kV, 17.5kV, 20kV, et 24kV. In specie ad tres phase AC 50/60Hz . dispositae potestas systemata, eius nucleus functiones sunt efficacia potentia receptio et distributio accurata, cum etiam reale tempus ambitus imperium, culpa tutelam, status vigilantia perficiendi. Probatio ut ex usune in XIV annos productum experientia in campo electrico medio-voltage, eius consilium integrat structuram maturam et technologiam provectam; librans electricae effectus cum facilitate operandi et sustentationis, et plene occurrens medium essentiale voltage potestas distribuendi necessitates potentiae, industriae, sectores aedificandi.
Humilis voltage switchgear
Medium voltage switchgear
Kyn28 Switchgear 24kV multiplicibus auctoritatibus domesticis et internationalibus technicis stricte adhaeret ut obsequium in toto consilio, productione, processibus experiatur. Core signa includunt:
- Signa nationalia: GB3906-2006 "3.6-40.5kV AC Metallum Inclusum Switchgear et Controlgear", GB/T11022 "Generalis
Technical Requirements for High intention Switchgear and Controlgear", DL/T404 "Condiciones technicae ordinandae
Indoor AC High intentione Switchgear"
- International Standard: IEC62271-200 "AC Metallum Inclusum Switchgear and Controlgear with Rated Voltage above 1kV
et Infra 52kV"
1. Temperature: -15℃~40℃; Uvor: Daily mediocris ≤95%, Vestibulum mediocris ≤90%
2. Altitude ≤1000m, Seismic intensio ≤8 gradus
3. Expers vaporum mordalium et flammabilium et crebris vibrationibus; specialis operating conditionibus potest nativus
tractatum.

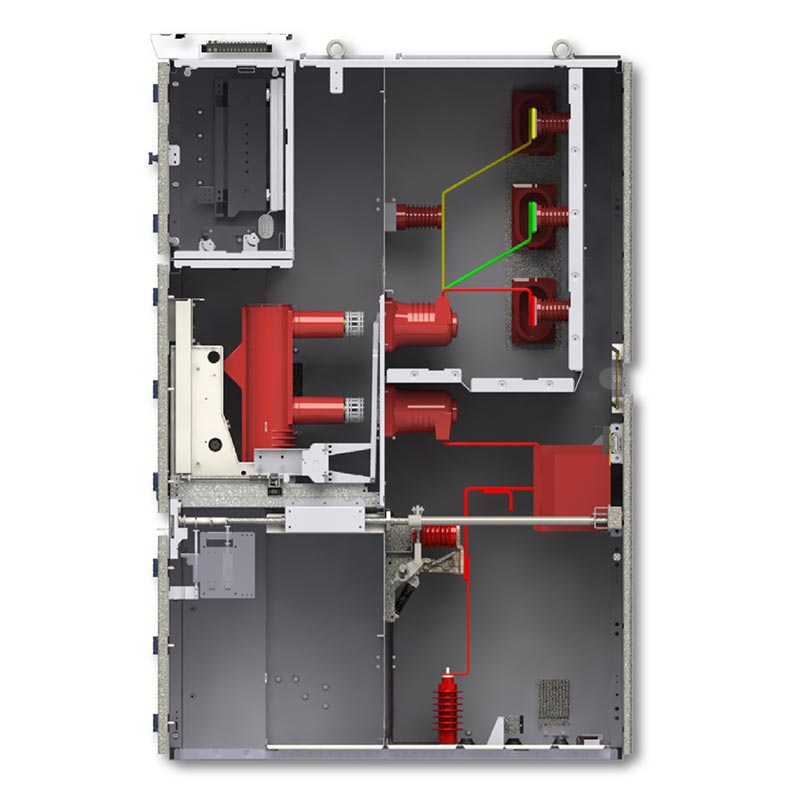

1. CATAFRACTATUS Structura inclusa: Independenter partita cubicula functionis electrici arcuum segregatorum, salutem amplificans.
2. Handcart amovibiles: Facilitates componentium substitutionis et sustentationis, breviandi uptime.
3. Duplex interlocking: quinque probationem tutelam praebet, misoperationem removens.
4. Arcus Vacuum Extinguendi: Arcus fortis exstinguendi facultatem, longi temporis spatium, frequenti operationi idoneus.
5. Pressura Relevamen Channel: Directional pressionis emissio in casu culpae, muniens apparatu circumstantium.
| Parameter Categoria | Core Indicatores |
| Ratum Voltage | 13.8kV, 17.5kV, 20kV, 24kV |
| Rated Frequency | 50Hz/60Hz |
| Ratum Current | 630A~3150A |
| Rated brevis Circuit Fractio Current | 25kA~50kA |
| Praesidium Level | IP4X (Cabinet), IP2X (Inter Compartments) |
| Item | Unitas | Parameter | |
| Rated voltage | kV | 24 | |
| Rated frequency | Hz | 50 | |
| Rated current of circuit ruptor | A | 630, 1250, 1600, 2000, 2500, 3150, 4000; | |
| Ratum est de switch scrinium current | A | 630, 1250, 1600, 2000, 2500, 3150, 4000; | |
| Ratum dynamicum vena (4s) | KA | 16, 20, 25, 31, 5, 40, 50; | |
| Rated stabilis vena (apicem) | KA | 40, 50, 63, 80, 100, 125; | |
| Ratum brevis circuitio praevaricationis current | KA | 16, 20, 25, 31, 5, 40, 50; | |
| Ratum ambitum brevem currentem faciens | KA | 40, 50, 63, 80, 100, 125; | |
| 1min potentia frequency voltage sustinere | polus, polus | kV | 65 |
| Per solitudinem spatium | kV | 79 | |
| Fulmen impetus sustinere voltage (apicem) | polus, polus | kV | 125 |
| Per solitudinem spatium | kV | 145 | |
| Praesidium campester | IP4X pro clausura, IP2X pro cella solitaria et locus ruptor ambitus apertus | ||
| Nota: brevis ambitus capacitas CT separatim consideranda est. | |||
Case 1: Power Distribution Project in a Large Chemical Industrial Park in Southeast Asia. Usue, ut amet fabrica, dummodo 82 tabulata switchgear huic parco, ad onera gravia idonea, nullis degradationibus perficiendis post 3 annos continuae operationis, fiens Probatio localis.
Case 2: Power Distribution Project in a Super High-Re Commercial Complex in China. Adhibetur ad 428 metrum super summus subterranea substatio oritur, eius consilium compactum et tutelam altam ad ambitum inclusum accommodans, procurans potentia stabilis suppeditat ad cottidianum influxum plusquam centum millia hominum.

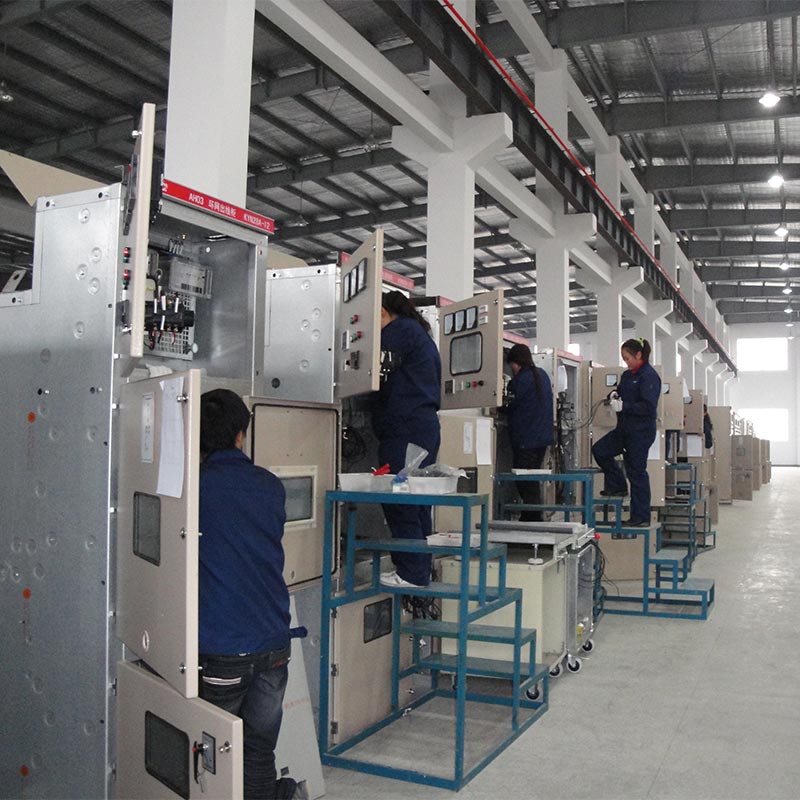

1. Fortitudo professionalis: XIV annos altae culturae, possidens independens R&D et productionem nativus
excedunt.
2. Rigorous Quality Control: Full-process quality inspection, each device with a complete test report.
3. Efficiens Delivery: Ordines latini per 15-20 dies traditi, necessitatibus urgentibus accommodati.
4. Customization Services: Supports OEM, logo, and parameter customization to meet individual needs.
5. Post-Sales Guarantee: warantia 12-mensis, post venditiones responsionem et solutionem intra 1-3 dies.
Usus Kyn28 Switchgear 24kV, cum matura technologia et certa observantia, praelatus factus est electio pro media intentione potestatis globally distributio. Commoda levandi Sinarum catenam supplent et copia officinas directa, usus positionum ipsarum ut opificem professionalem et certissimum supplementum, conferens progressionem potestatis globalis infrastructuram.
