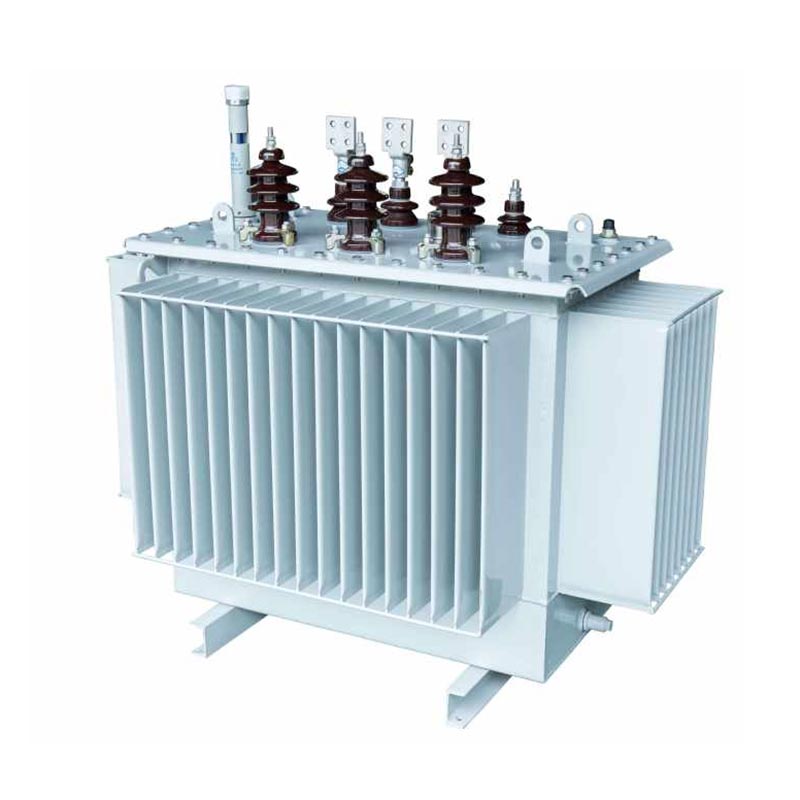

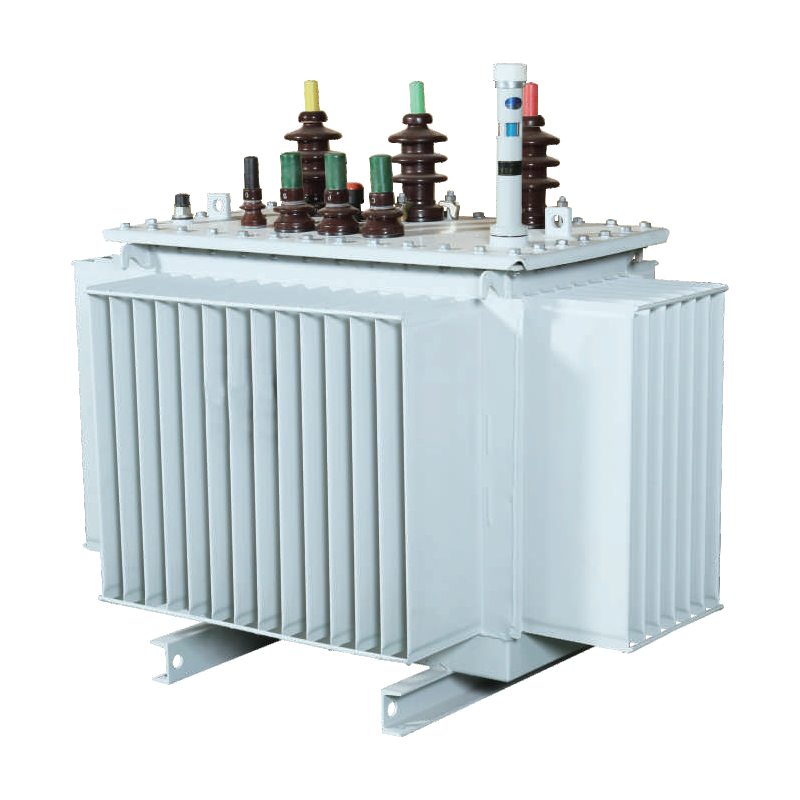

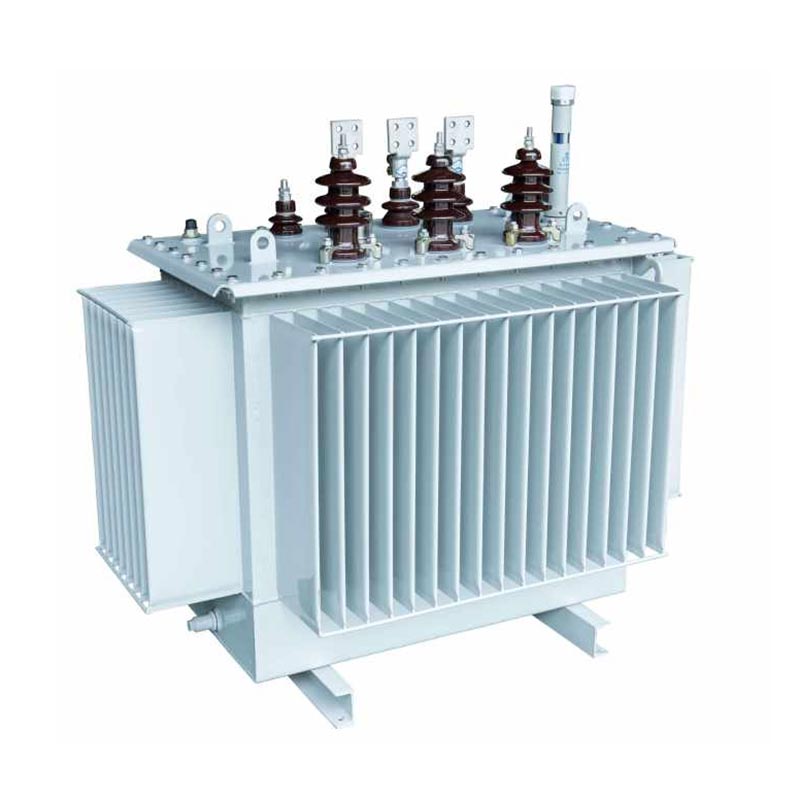

Usus 3 Phase Onan Distribution Transformer (ONAN) independenter enucleatur et ab usu conficitur, a. professionalem fabricam integrationem R&D, productionis et venditionum. Hoc specialiter ad potentiam dispositum est necessitates distributio urbanorum et ruralium modernorum et inceptis industrialibus et fodiendi, problemata solvenda ut humilis efficientiae, altae industriae consummatio, et pauperum stabilitas translatorum traditorum. Productum confici in USUNUM officinas de mensuris, in qualitatis proprietatis ratio freti ut singula instrumenta signa industriae internationalis occurrit et stabiliter operari potest sub variis conditionibus duris operantis.
The 3 Phase Onan Distributio Transformer utitur vulnere tria dimensiva core cum triangula aequilatera collocatio, hiatus aeris in ambitu magnetico eliminato, inde in ambages arctius et quam brevissime tres-phase magneticae circuitus longitudinis. Core columna crucis-sectionalis area fere circularis est, the optimizing magnetica ambitus structura, industria consummatio et strepitus operans reducens, stateram trium phase attingens, et reducendo tertiam compositionem harmonicam, funda- tionem efficientis et stabilis virtutis copiam.
Productum hoc aptum est ad opes urbanas et agrestes eget upgrades et industriae et fodiendi inceptis missionibus, et perfecte congruere possunt cum modularibus et praefabricatis substationibus, certae virtutis praestantia subsidia praebentes. Ut a * professionalis potentiae instrumenti supplementum, USUNE amplam R&D habet et experientiam faciens et praebere potest nativus solutiones secundum necessitates Lorem.
The 3 Phase Onan Distribution Transformer uses high-qualis of grain-oriented pii chalyte schedas with excellent magnetica permeabilitas et minora damna; utitur a German GEORG crucis-sectionis apparatus cum 45° commissura sectione ut in tuto collocet core praecisionem et lacus magnetica minuere; Pii chalybeis schedae complicatae sunt in multi-scaena circularia sectiones transversas, optimizing ambitum magneticum, sonitum et vim minuendi et industriam augendi tuentur.
Columpna volativa summus est cylindricus, dum gyrus humili- voltus est cylindricus vel ffoyle, efficaciter melior. breve spatium et fulmina resistunt. Consilium coilum rationale est, cum ambitu magnetico uniformi distributio, extensio localis exustionis, servitii vitae extendens, et operationem stabilem procurans.
Factus est summus qualitas subtilitatis laminae ferreae frigidae involutae, fabricata utens piscinae olei Germanicae GEORG CONRUGIS linea productio, sistens robur structurae et signationem. Superficies obducta cum anti- corrosione vestitur; apta ad duras ambitus sicut plantae petrochemicae, requisita tutelae environmental occurrens. The limae structurae calorem disiuncta et aptabilitatem ad oleum scelerisque expansionem et contractionem componit, dum signatus consilio tardat oleum senescit et transfigurat vitam.
In III Phase Onan Distributio Transformer utitur classis A Nulla compages cum praeclara velit perficientur, quae sustinendae summus intentione confligant. Altae et infimae intentione gyros disponuntur concentrically, et gyros spatulae in manica cardboard cum parvo olio hiatu ad emendandam insolutionem faciendam; breves ambitus praecavete, et securam et stabilem operationem obtine.
USUNUS 3 Phase Onan Distributio Transformer (ONAN) comprehendit tres gradus intentionis: 10KV, 20KV, 36KV, conventus variis facultatibus distributio indiget. Nativus esse potest secundum ipsum onus emptoris, nucleum specificationum; et institutionem missionis, solutiones flexibiles praebens.
1. Pretium electricitatis (RMB/Year) = [Non-load Loss (kW) + Load Loss (kW) (Mediocris Load Rate)²] 365 (dierum) 24
(Hora)
Electricity Price
2. CO2 Emissiones = [Non-load Loss (kW) + Load Loss (kW) (Mediocris Load Rate)²] 365 (Dies) 24 (Hora) Emissio
Factor (kg-CO₂/kWh)
Producti sine onere et onere damna signanter minora sunt quam translaticia tradita, signanter minuendo utentium electricitatis sumptibus et emissiones CO2. Ut fabrica in Sinis radicata, usui viridi conceptui adhaeret evolutionem, continenter optimizat productum consilium, ac sustineri potentiae industriae progressionem promovet.
1. Urbanus et Ruris potestas malesuada euismod Upgrading: Improves potestatem eget firmitatem et efficientiam, solvendo problemata insufficiens potentia copia et summa industria consummatio.
2. Industrial and Mining Enterprises: Meet postulatio summus potentiae, Vis stabilis copia, dura resistit. ambitus et operandi instrumenti efficiendi.
3. Substantiae modulares et Prefabricatae: Foedus structurae, opportunae institutionis et conservationis, terram reducendi area and construction costs.
| Facultas nominalis (kVA) | HV (kV) | Princeps intentione percussoque range | LV (kV) | Vector group | Nullus onus damnum (kW) | damnum onus (KW) | Nullus onus current (%) | Impedimentum (%) | Totalis pondus (kg) | L×W×H (mm) | Installation centrum / institutionem foraminis (mm) |
| 30 |
6 6.3 10 10.5 11 |
±5% ±2×2.5% |
0.4 | Yyn0 Dyn11 |
100 | 630/600 | 1.8 | 4.0 | 335 | 1030×690×860 | 400x400/4xφ14 |
| 50 | 130 | 910/870 | 1.6 | 410 | 1045×700×925 | 400x400/4×φ14 | |||||
| 63 | 150 | 1090/1040 | 1.5 | 460 | 1075×710×940 | 400x400/4×φ14 | |||||
| 80 | 180 | 1310/1250 | 1.4 | 490 | 1080×715×995 | 400× 400/4×φ19 | |||||
| 100 | 200 | 1580/1500 | 1.3 | 550 | 1110×730×1020 | 40×400(50)14×019 | |||||
| 125 | 240 | 1890/800 | 1.2 | 615 | 1135×740×1035 | 40x×400(50)4×019 | |||||
| 160 | 280 | 2310/2200 | 1.1 | 695 | 1155×755× 1050 | 550× 550/4×φ19 | |||||
| 200 | 340 | 2730/2600 | 1 | 790 | 1200×770×1075 | 550× 550/4×φ19 | |||||
| 250 | 400 | 3200/3050 | 0.9 | 930 | 1240×800×1100 | 550× 550/4xφ19 | |||||
| 315 | 480 | 3830/3650 | 0.8 | 1110 | 1305×840×1120 | 550× 550/4×φ19 | |||||
| 400 | 570 | 4520/4300 | 0.7 | 1290 | 1390×900×1160 | 660×660/4xφ19 | |||||
| 500 | 680 | 5410/5150 | 0.7 | 1510 | 1500×990×1195 | 660×660/4×φ19 | |||||
| 630 | 810 | 6200 | 0.6 | 4.5 | 1730 | 1580× 1030× 1305 | 660×660/4xφ19 | ||||
| 800 | 980 | 7500 | 0.6 | 2075 | 1705×1140×1360 | 820×820/4×φ19 | |||||
| 1000 | 1150 | 10300 | 0.5 | 2490 | 1730× 1290×1395 | 820×820/4×φ19 | |||||
| 1250 | 1360 | 12000 | 0.4 | 2960 | 1780×1320×1480 | 820×820/4×φ19 | |||||
| 1600 | 1640 | 14500 | 0.4 | 3515 | 1890×1430×1520 | 820×820/4×φ19 | |||||
| 2000 | 1940 | 18300 | 0.4 | 5 | 4880 | 2050×1360×1840 | 820×820/4×φ19 | ||||
| 2500 | 2290 | 21200 | 0.4 | 6010 | 2170×1430×2015 | 1070× 1070/4×φ19 |
Nota: Pro transfomers cum capacitate aestimatorum 500 kVA et infra, oneris iacturae supra aggerem in mensa est applicabiles in Dyn11 " iunctio globi, et oneris iacturae infra aggerem applicabile est ad nexum coetus Yyn0.
| Facultas nominalis (kVA) | HV (kV) | Princeps intentione percussoque range | LV (kV) | Vector group | Nullus onus damnum (kW) | damnum onus (KW) | Nullus onus current (%) | Impedimentum (%) | Totalis pondus (kg) | L×W×H (mm) | Installation centrum / institutionem foraminis (mm) |
| 30 |
6 6.3 10 10.5 11 |
±5% ±2×2.5% |
0.4 | Yyn0 Dyn11 |
80 | 630/600 | 1.8 | 4.0 | 345 | 1175×685×925 | 400×400/4xφ14 |
| 50 | 100 | 910/870 | 1.6 | 430 | 1190×700×985 | 400×400/4xφ14 | |||||
| 63 | 110 | 1090/1040 | 1.5 | 500 | 1210×710×1015 | 400×400/4xφ14 | |||||
| 80 | 130 | 1310/1250 | 1.4 | 570 | 1240×730×1080 | 400× 400/4xφ19 | |||||
| 100 | 150 | 1580/1500 | 1.3 | 590 | 1255×730×1095 | 400×400(500)4×Q19 | |||||
| 125 | 170 | 1890/800 | 1.2 | 675 | 1300×740×1255 | 400×400(50)4×Q19 | |||||
| 160 | 200 | 2310/2200 | 1.1 | 755 | 1330×760×1275 | 550× 550/4xφ19 | |||||
| 200 | 240 | 2730/2600 | 1 | 870 | 1360×770×1300 | 550× 550/4xφ19 | |||||
| 250 | 290 | 3200/3050 | 0.9 | 1035 | 1390×800×1340 | 550× 550/4xφ19 | |||||
| 315 | 340 | 3830/3650 | 0.8 | 1200 | 1440×820×1375 | 550× 550/4xφ19 | |||||
| 400 | 410 | 4520/4300 | 0.7 | 1390 | 1470×830×1415 | 660×660/4xφ19 | |||||
| 500 | 480 | 5410/5150 | 0.7 | 1590 | 1545×950×1445 | 660×660/4xφ19 | |||||
| 630 | 570 | 6200 | 0.6 | 4.5 | 1950 | 1650×1000×1565 | 660×660/4xφ19 | ||||
| 800 | 700 | 7500 | 0.6 | 2375 | 1975× 1060×1690 | 820×820/4xφ19 | |||||
| 1000 | 830 | 10300 | 0.5 | 2685 | 2160× 1240× 1725 | 820×820/4×φ19 | |||||
| 1250 | 970 | 12000 | 0.4 | 3110 | 2200× 1260× 1820 | 820×820/4xφ19 | |||||
| 1600 | 1170 | 14500 | 0.4 | 3800 | 2260×1320×1890 | 820×820/4xφ19 | |||||
| 2000 | 1550 | 18300 | 0.4 | 5 | 5005 | 2540×1290×2225 | 820×820/4xφ19 | ||||
| 2500 | 1830 | 21200 | 0.4 | 6310 | 2625×1360×2395 | 1070× 1070/4×φ19 |
| Facultas nominalis (kVA) | HV (kV) | Princeps intentione percussoque range | LV (kV) | Vector group | Nullus onus damnum (kW) | damnum onus (KW) | Nullus onus current (%) | Impedimentum (%) | Totalis pondus (kg) | L×W×H (mm) | Installation centrum / institutionem foraminis (mm) |
| 30 |
6 6.3 10 10.5 11 |
±5% ±2×2.5% |
0.4 | Yyn0 Dyn11 |
80 | 505/480 | 1.8 | 4.0 | 390 | 1210×705×935 | 400× 400/4×φ14 |
| 50 | 100 | 730/695 | 1.6 | 495 | 1255×715×1020 | 400× 400/4×φ14 | |||||
| 63 | 110 | 870/830 | 1.5 | 540 | 1240×725×1045 | 400× 400/4×φ14 | |||||
| 80 | 130 | 1050/1000 | 1.4 | 620 | 1270×740×1105 | 400× 400/4×φ19 | |||||
| 100 | 150 | 1265/1200 | 1.3 | 685 | 1295×750×1120 | 40×40(550)14×019 | |||||
| 125 | 170 | 1510/1440 | 1.2 | 775 | 1345×760×1285 | 40×400(550)14×019 | |||||
| 160 | 200 | 1850/1760 | 1.1 | 890 | 1360×780×1325 | 550× 550/4×φ19 | |||||
| 200 | 240 | 2185/2080 | 1 | 1005 | 1415×790×1340 | 550× 550/4×φ19 | |||||
| 250 | 290 | 2560/2440 | 0.9 | 1130 | 1450×810×1360 | 550× 550/4×φ19 | |||||
| 315 | 340 | 3065/2920 | 0.8 | 1320 | 1495×830×1410 | 550× 550/4×φ19 | |||||
| 400 | 410 | 3615/3440 | 0.7 | 1445 | 1510×840×1435 | 660×660/4×φ19 | |||||
| 500 | 480 | 4330/4120 | 0.7 | 1735 | 1555×855×1495 | 660×660/4×φ19 | |||||
| 630 | 570 | 4960 | 0.6 | 4.5 | 2080 | 1655×905×1610 | 660×660/4×φ19 | ||||
| 800 | 700 | 6000 | 0.6 | 2465 | 1960×910×1725 | 820×820/4×φ19 | |||||
| 1000 | 830 | 8240 | 0.5 | 2755 | 2060× 1210×1765 | 820×820/4×φ19 | |||||
| 1250 | 970 | 9600 | 0.4 | 3480 | 1590×1120×1940 | 820×820/4×φ19 | |||||
| 1600 | 1170 | 11600 | 0.4 | 4110 | 1670× 1180×1770 | 820×820/4×φ19 | |||||
| 2000 | 1550 | 14640 | 0.4 | 5 | 5610 | 2240×1140×2495 | 820×820/4×φ19 | ||||
| 2500 | 1830 | 16960 | 0.4 | 6735 | 2315×1210×2670 | 1070× 1070/4×φ19 |
Factory, pretium est rationabile et competitive pretium praestare possumus.
Plerumque intra XXIV horas post inquisitionem tuam acceptam commemoramus.
Ita sane OEM accipimus.
Plumbum tempus pendet a quantitatibus ordinatis, plerumque intra 15-20 dies post acceptam solutionem.
Omnia producta ab accessoriis incipiendo inspicientur, et per experimenta exercitationis peragentur antequam discedant officinam nostram.
Imagines photographicas vel vide quaestiones qualitates tolle et mitte nobis ad nostram reprimendam et confirmandam et faciemus a satisfied solution for you within 1-3 days.
XII mensibus de naviculas date.
Lorem in campo plus quam 14 annos habet, et R&D turmas bene expertas consilio capiendo habet
et evolutionis labor pro singulis propositis in specialibus exigentiis emptoris fundatur.
A rationibus QC maxime stricte habemus e componentibus ad productos perfectos.
● Stabilis productio tempus intra 15-20 dies.
Nos plenam testium relationum productorum copiam habemus.
● unus gradus solutionis provisum.
